10' Box and Pan Brake - Manual, 14 Gauge - Baileigh

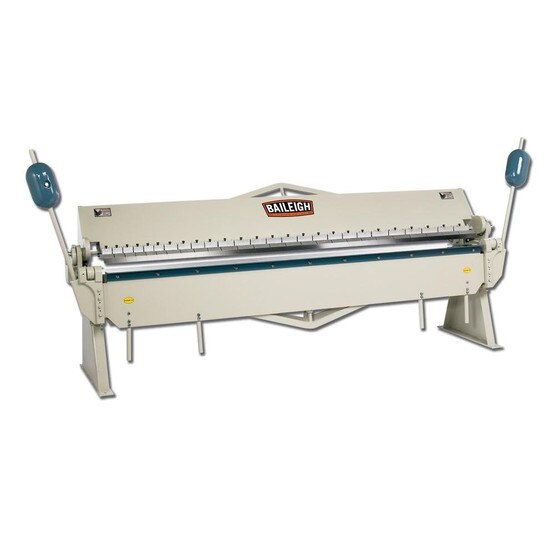

- The BB-12014 sheet metal brake has a 120" wide web width to allow for 4' x 8' sheets to be bent at 45 degree angles.
- This finger brake has 26 varying sized fingers that allows for metal bending of most size box and pans up to 6" deep.
- This massively built machine almost weighs in at 3500 lbs and supports a heavy duty truss rod system for supporting the apron during maximum capacity bends.
- Furthermore the apron is stabilized by the massive frame that is electro welded of all steel construction and ready to provide decades of serious use at the machines maximum capacity of 14 gauge mild steel and 18 gauge stainless steel.
- This is the perfect metal brake for the general fab shop or HVAC shop and accepts the entire length of sheet metal at 45 degrees, allowing for angle crimps to add support to long duct pieces, and can handle up to 14GA mild steel.
- The apron shafts ride in precision lube for life bearings allowing for better bend tolerances and less operator fatigue.
- The apron is further supported by two massive counter weights further reducing operator fatigue even at maximum capacity.
- Of course the individual hardened fingers can allow for straight bending or box and pan configurations.
- Baileigh's line of sheet metal forming machines consists of six sheet metal brakes including the BB-12014.
- Baileigh sells sheet metal fabrication equipment throughout North America and Western Europe and has the quality design and product customers expect when purchasing from Baileigh Industrial.
More v
- Min Reverse Bend: .625"
- Thickness (SS): 14 ga. (18 ga.)
- Box Depth: 6"
- Beam Adjustment: 1"
- Bend Angle: 0 135°
- Finger Sizes: 3" 4" 5" 6"
- Power: Manual
- Shipping Weight: 3,410 lbs.
- Length: 120
- Shipping Dimensions: 145" x 33" x 45"
