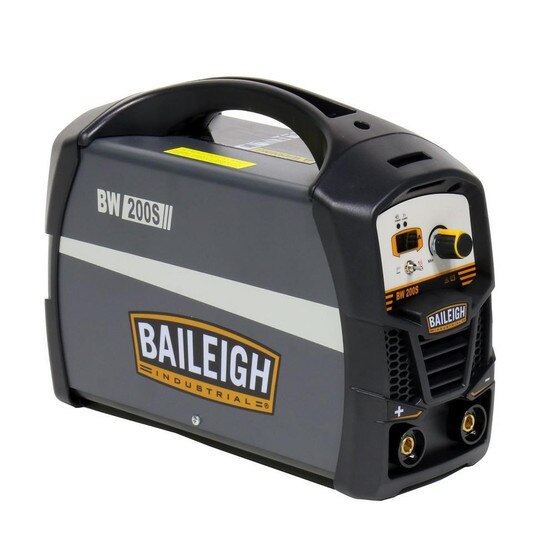

Stick Welder - 200A Dual Voltage - Baileigh
- Portable IGBT Inverter stick welder
- Dual voltage can run on 120 volt or 230 volt single-phase power
- Intelligent voltage sensing – This welder knows what voltage it is plugged into and (when plugged into 120V) will limit the output of the welder
- Step-less Current Adjustment - adjustments are infinite and do not “click” between only a few options
- Thermal Overload Protected, will shut down welding if its temperature is too high
- Fan Cooled
- Anti-Stick / Hot Start - automatically increases output at the beginning of a weld to pre-heat the weld and electrode
- Arc Force, keeps arc more stable, with less sticking, when the electrode is close
- Lift ARC TIG capable – Torch not included
- High Open Circuit Voltage
- Generator safe and will tolerate large voltage variations
- Easily sourced consumables

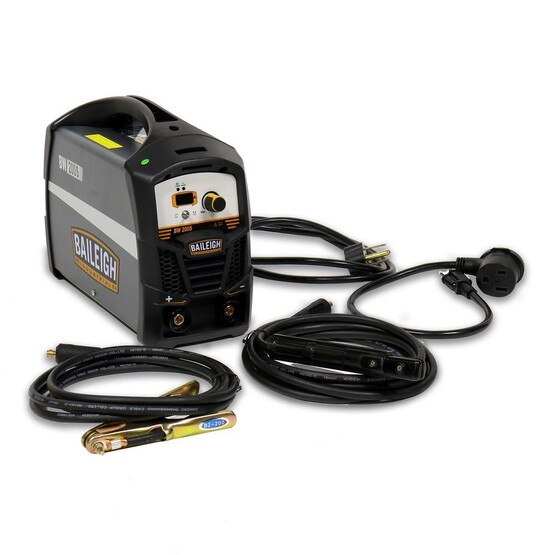

- Includes electrode holder, ground clamp, 6-50P 250V plug, and adaptor to 120V plug
More v
- Cooling System Fan Cooled
- Maximum Current 200 Amps
- Power Dual Voltage - 120V/230V Single Phase
- Shipping Weight 20 lbs.
- Rated Input Current 20A (120V) / 40A (230V)
- Rated Input Capacitance 4.4KVA (120V) / 9.2KVA (230V)
- No-Load Voltage 78V (120V) / 78V (230V)
- Rated Working Voltage 23V (120V) / 28V (230V)
- Welding Current 15A~75A (120V) / 12A~200A (230V)
- Rated Duty Cycle 100% (120V) / 15% (230V)
- 100% Rated Duty Cycle 77A (120V) / 77A (230V)
- Efficiency 85%
- Power Factor .75
- Insulation Class H
- Enclosure Protection IP21S
- Special Notes Includes electrode holder, ground clamp, 6-50P 250V plug, and adaptor to 120V plug
- Certification CSA UL
- Shipping Dimensions (Inches) 18x10x14
