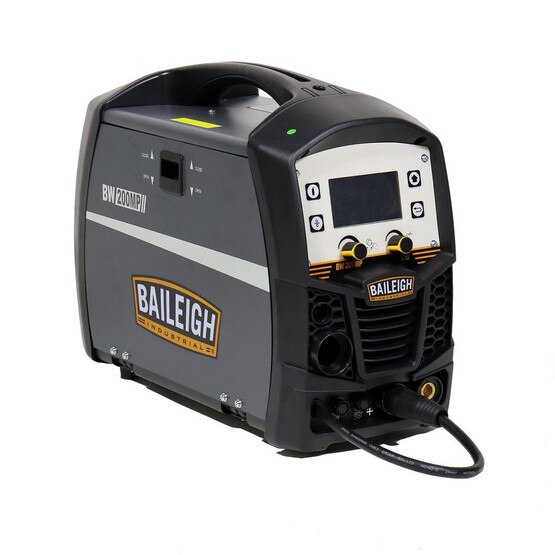

Baileigh Welder - Multi-Process 200A - Baileigh
- The BW 200 IGBT inverter technology requires 25% less input power and delivers consistent power output
- Dual voltage can run on 120 volt or 230 volt single-phase power
- LCD control screen provides quick and easy setup with save for future setup mode
- Performs MIG and Flux Core Welding 40–140 Amps (120V) and 40–200 Amps (230V); TIG Welding up to 180 Amps; Stick Welding up to 180 Amps
- Built-in, adjustable spot timer adds versatility
- Synergic wire diameter and material thickness settings makes for easy work
- Infinite wire feed speed control allows user to adjust the voltage and current accurately
- ARC force (MMA)
- Hot start (MMA)
- 2T/4T (trigger lock off/ trigger lock on)
- Generator Safe
- Easily sourced consumables

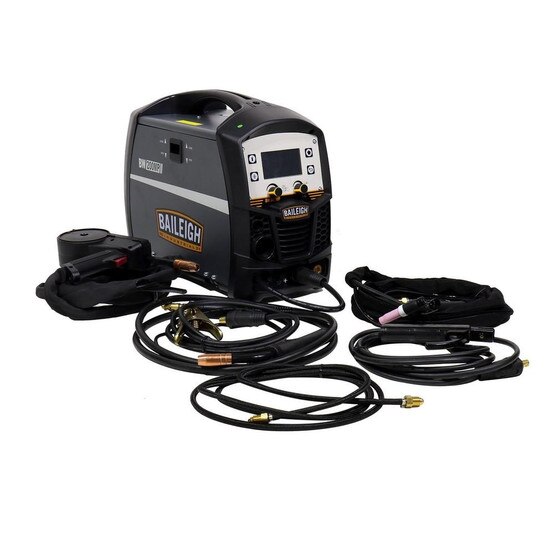

- 200A Inverter Welder Includes: 10ft. spool gun, electrode holder, TIG torch, foot pedal, MIG torch, ground clamp, gas regulator w/hoses, 6-50P 250V plug, and adaptor to 120V plug
More v
- Cooling System Fan Cooled
- Maximum Current 200 Amps
- Power Dual Voltage - 120V/230V Single Phase
- Shipping Weight 71 lbs.
- Rated Input Current 20A (120V) / 36A (230V)
- Rated Input Capacitance 3.5KVA (120V) / 8.6KVA (230V)
- No-Load Voltage 69V (120V) / 69V (230V)
- Rated Working Voltage 18.5V (120V) / 24V (230V)
- LIFT Welding Current 10A~70A (120V) / 10A~180A (230V)
- MIG Welding Current 40A~90A (120V) / 40A~120A (230V)
- Rated Duty Cycle 40% (120V) / 20% (230V)
- 100% Rated Duty Cycle 57A (120V) / 89A (230V) - 10 minutes
- Efficiency 85%
- Power Factor .75
- Insulation Class F
- Enclosure Protection IP21S
- Special Notes Includes 10ft. spool gun, electrode holder, TIG torch, foot pedal, MIG torch, ground clamp, gas regulator w/hoses, 6-50P 250V plug, and adaptor to 120V plug
- Certification CSA UL
- Shipping Dimensions (Inches) 28x13x18
