Airspade ASU4225KT Utility 4000 225 Cfm Kit

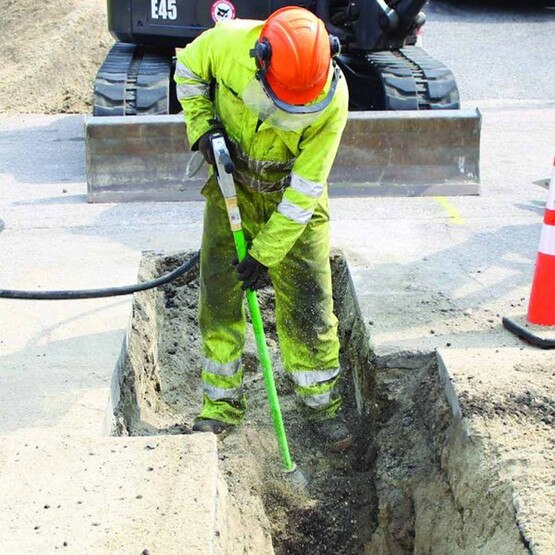

- Features the powerful Utility AirSpade 4000 air-excavation tool equipped with patented, Nickle Aluminum Bronze non-sparking supersonic nozzle for superior digging performance. Rugged, lightweight ergonomic handle with retractable stabilizer bar features dead-man trigger for comfortable, safe operation. Insulated, 4 Ft. fiberglass barrel, rated up to 300kV, provides protection from buried electrical lines. Heavy-duty locking storage case.
- Utility AirSpade handle assembly with Chicago-style, swivel connector
- 4 Ft. insulated barrel with dirt shield
- 3 Ft. insulated extension and non-sparking Brass coupler
- 45 degree non-sparking Brass angled adapter

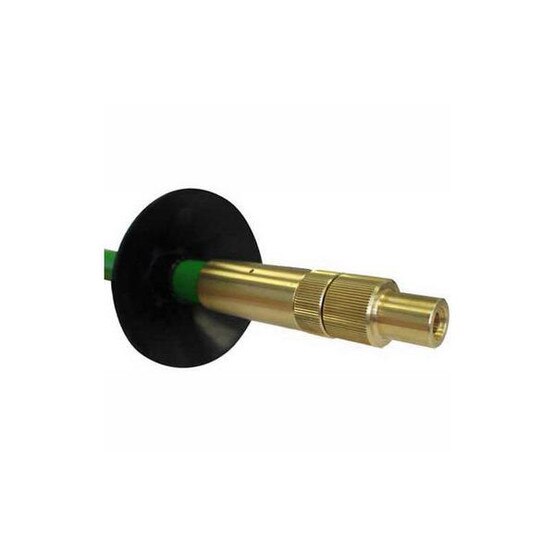

- 105, 150 or 225 cfm non-sparking Nickle Aluminum Bronze nozzle
- 1" ID x 10 Ft. lightweight air hose with Chicago-style connectors
- Heavy-duty, plastic storage case with lock

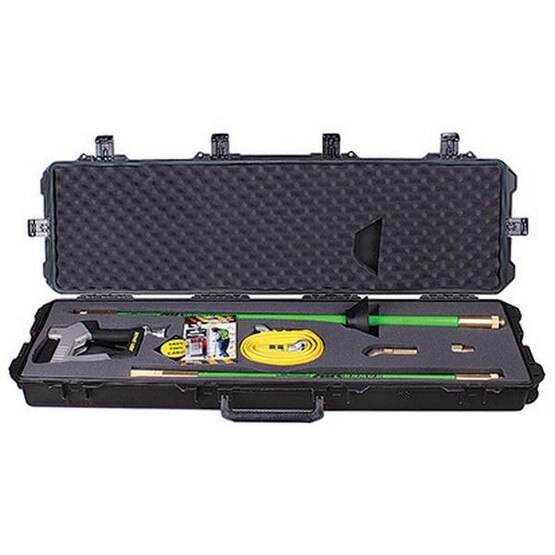

- Includes: Utility AirSpade 4000 Handle, 4 Ft. insulated, fiberglass barrel with dirt shield, 3 Ft. insulated extension, 105 cfm non-sparking bronze supersonic nozzle, Plastic locking storage case, 45 degree non-sparking Brass angled adapter, 1" ID x 10 Ft. lightweight air hose with Chicago-style connectors, Operations Manual
More v
- Inlet: 3/4" FNPT
- Min. Compressor Required (hp): 50
- Soil Excavation Rate (cubic ft/min): 1.7 - 2.3
- Noise Level (dB): 124
- Flow (cfm): 225
- Dimensions: 54 x 6.7 x 16.5
- Weight (lbs): 42
