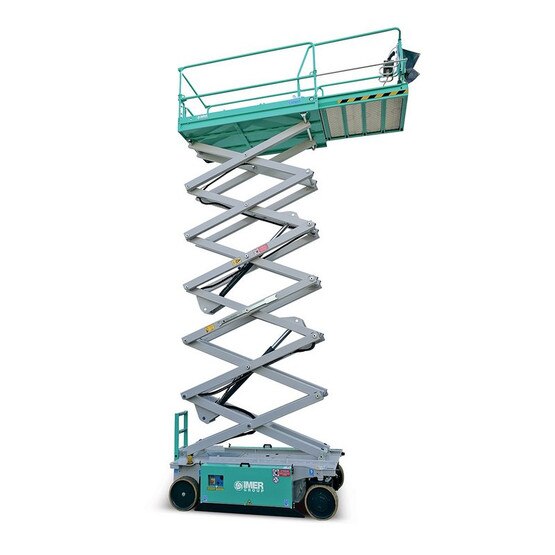

Imer Access Scissor Man Lift - 46' Working Height - Drivable | IM 4740E
- Engineered to be compact and light-weight for easy clearance and maximum versatility.
- Platform Height of 40 Ft | Base Width of 40 Inches
- Platform Length (Extended) 11' - 8"
- Basket length 7'-5" | Basket Extension 51"
- The reduced size, generous capacity, and optimized weight distribution ensure maneuverability in tight spaces with small steering angles.
- Operators may drive in any position, including at full height, providing superior productivity.
Includes:
- Manual deck extension (holds two people)
- Electric traction on the front wheels
- Negative electromagnetic parking brakes with electric disengagement
- 90° wheel steering

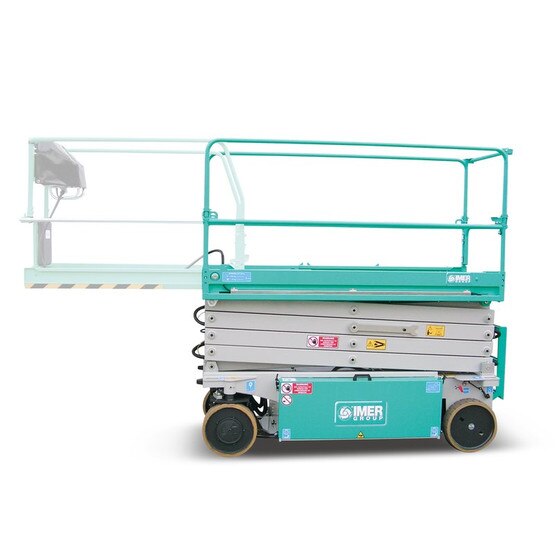

- Manual deck extension of 39½”
- Manual emergency lowering
- Non-return valve on lifting cylinders
- Traction batteries 24V-185Ah (c5)
- Battery charger with automatic cut-off
- All movement alarm, horn, hour meter
- Tilt meter with motion cut-out and alarm
- Mechanical release for emergency hauling
- Solid rubber non-marking tires
- Electric scissor protection
- Pot Hole protection
- Battery level control with low voltage protection
- Foldable guardrails
- Platform weight management
- ANSI 92.20 / CSA / CE & EN280 approved
- AC power to platform
- Flashing beacon
- Proportional controls with diagnostics
- OPTIONAL EQUIPMENT
120 V cable with plug, socket and safety cut-out
Gel battery IM 35 series
Additional flashing beacon kit
Compressed air line
More v

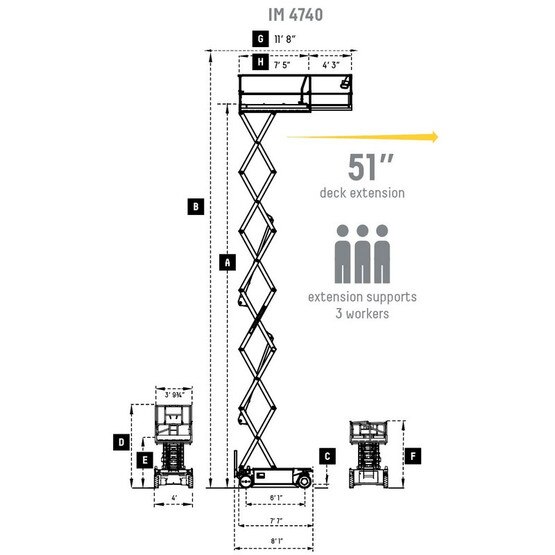

- A Platform Height ft 39'4"
- B Working Height ft 45’ 2"11
- C (Pot-hole raised/lowered) inch 4.7” / 1” mm
- D Height Stowed ft 8'7
- E Height (ground to platform bottom) ft 4' 10-1/2”
- F Height Storage (with guardrails) ft 6'11”
- H Platform length - extended ft 11'8”
- Platform Length - 7'5"
- Extension platform length ft 4’ 3"
- Capacity / number of people lb / # 770 / 3
- Electric drive motors V / HP 24 / 4 V
- Lifting power pack – hydraulic type V / HP 24 / 4.0 V
- Lifting / Lowering time (loaded) sec 68/55 sec
- Hydraulic tank capacity gal 4.9
- Drive speed mp / h 2.5
- Safety traction mp / h 0.4
- Gradeability % 25
- Internal steering radius ft 0
- External steering radius 92-½"
- Tire size (wheel dimension) inch 16” x 5”
- Wheel type cushion cushion
- Max side/longitudinal tilt angle degrees 1.8 / 3.0
- Total weight lb 6430
