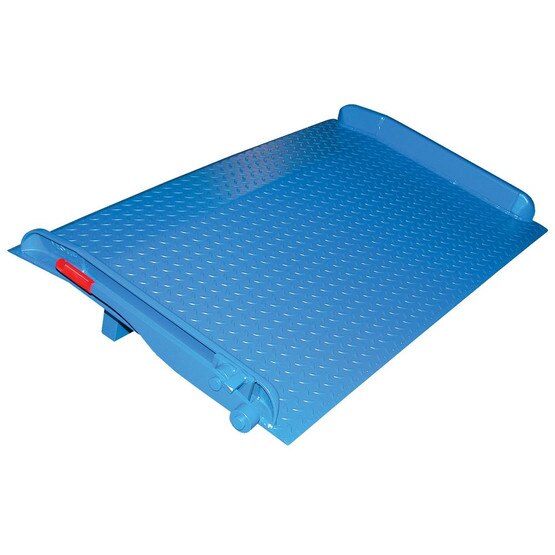

Vestil TS-20-7260 Steel Truck Dockboard With Side Curbs
- Manufactured from high-strength steel treadplate for maximum durability
- Heavy-duty steel curbs are welded in place for maximum strength
- Includes patented lever lift for easy fork truck positioning
- Smooth transition provided by beveled entrance and exit
More v
- The Steel Truck Dockboard is constructed of high strength (55,000 psi) steel for long life. Beveled edges on both ends permit smooth entry and exit. Deck is diamond plated for safe, efficient use. Welded safety curbs for maximum strength. Locking legs minimize ramp movement and are uneven to allow the dockboard to sit canted for easier floor pickup by fork trucks when not in use. Legs are located 12" from the edge of the dockboard. The bend is 11 and 9 degrees from beveled edge. Standard with leverlift for quick portability with fork truck. Manufactured in compliance with OSHA. Optional accessories: lifting chains, span locks, span pins/holes and removable pickup loops.
- Uniform Capacity (lbs.): 20000
- Height Difference at 11 degree/19 percent (in.): 10
- Steel Strength (PSI): 55000
- Bend Degree: 11
- Bend Distance from Beveled Edge (in.): 9
- Leg Distance from Edge (in.): 12
- Product Length (in.): 60
- Product Width (in.): 72
- Product Height (in.): 16
