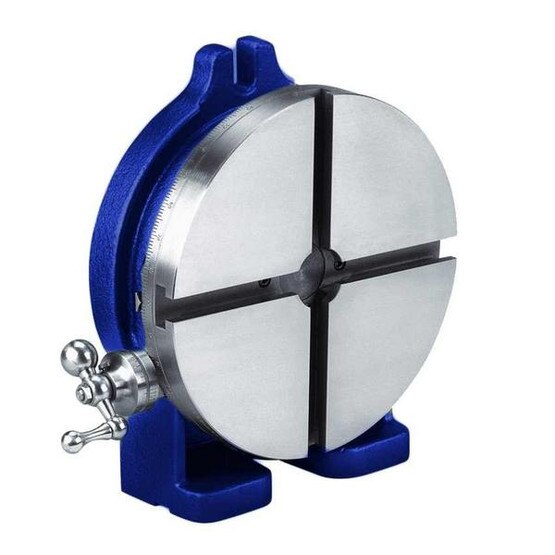

Palmgren 9632806 Horizontal/vertical Rotary Table, 8 In
- Use in either the vertical or horizontal position
- The table top and the vertical and horizontal bases are ground for overall squareness
- Precision ground table top to 0.001" total indicator reading
- A 5/8" keyway and mounting lugs are provided on both the vertical and horizontal mounting surfaces
- Smooth worm gear drive provides positive rotary feed
- Balanced ball crank feed handle does not exceed below the base to eliminate interference with the machine table
- Rotary dial is graduated in 3 minute increments and 1 minute increments on the vernier
More v
- Part Number: 9632806
- Base: 12" x 9-1/2"
- Gear Ratio: 40:01:00
- Height at 0: 3-7/8"
- Table Diameter: 8"
- Width: 14.750"
- Warranty: Limited Lifetime
- Country of Origin: TAIWAN
