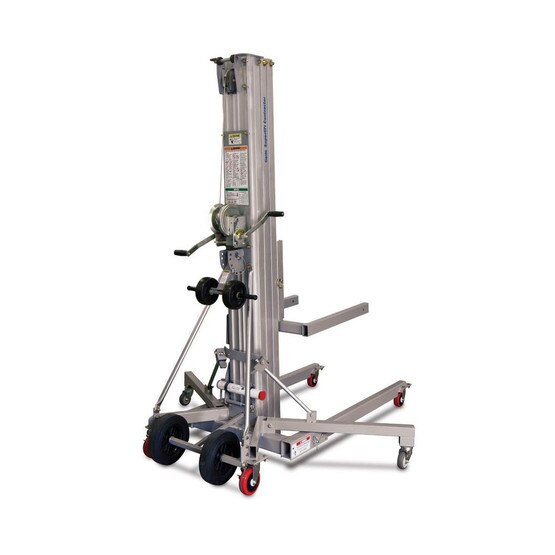

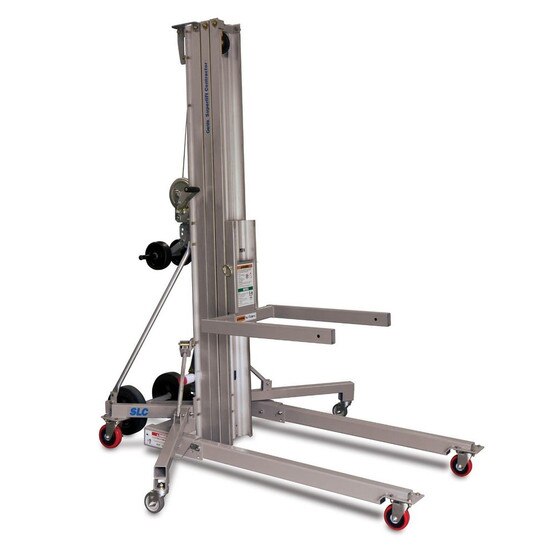

18' Genie Material Lift - 650 LB, Contractor Lift, SLC-18
- Heavy duty design, yet lightweight and portable.
- Quick setup requires no tools.

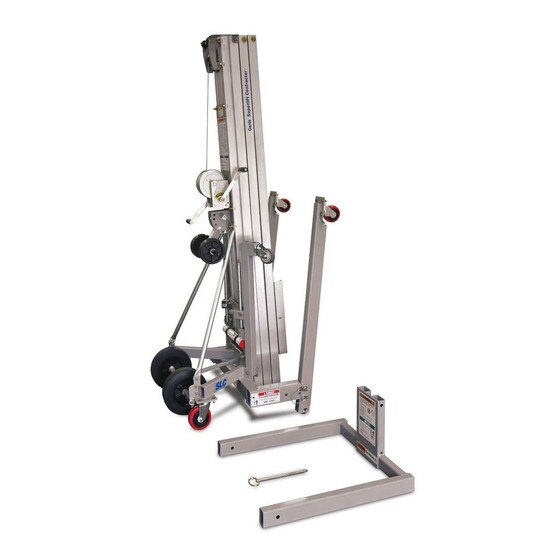

- Material lift loads easily into a pickup truck for transporting.
- Rear transport wheel assembly.
- 4 in (10 cm) front casters and 5 in (13 cm) rear casters with side brakes are standard.
- Hold-down bar holds mast assembly in place during transport.
More v

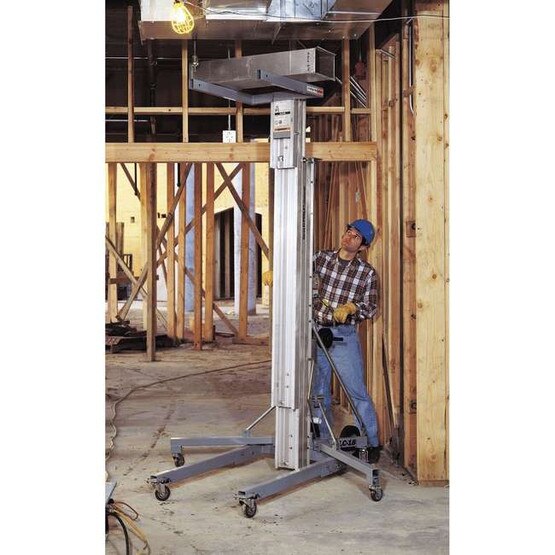

- The Superlift Contractor is an ideal tool for construction firms and every kind of contractor.
- Height - stowed: 86 in
- Length - stowed: 34 in
- Length - operating: 73 in
- Width: 311/2 in
- Width-stabilizers lowered: 66 in
- Ground clearance: 2 in
- Load height - min: 6 in
- Weight - standard base: 307 lb
- Average Cranks:
- Standard winch: 8 1/2 /ft
- Two-speed winch, high: 4 /ft
- Two-speed winch, low: 15 /ft
- Load Capacity:
- 14 in (36 cm) load center: 650 lb
- 24 in (61 cm) load center: 425 lb
- 42 in (1.07 m) load center: 160 lb
- Working Height:
- Standard forks
- Forks down: 16 ft 9 in
- Forks up: 18 ft 6 in
- Adjustable Forks
- Forks down: 16 ft 9 in
- Forks up: 18 ft 6 in
- Boom: 17 ft 9 in
