Vestil WTJ-20-3-AC-GAL Ac Powered Jib Crane 2k 3-5 Ft Boom Galv

Part# VES-WTJ-20-3-AC-GAL
$3,747.00
On Order. Call Now.
Ships by Truck

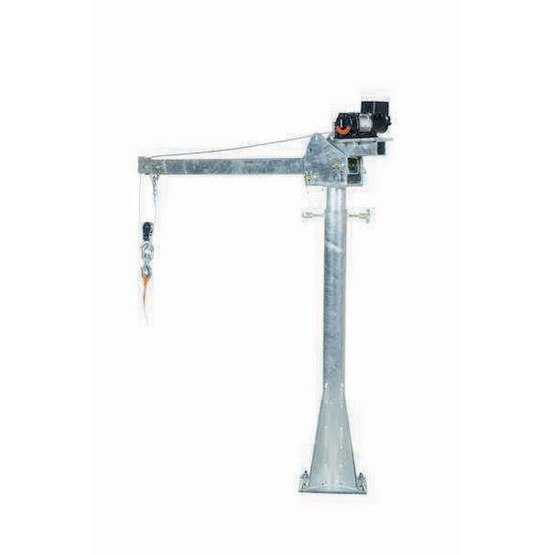

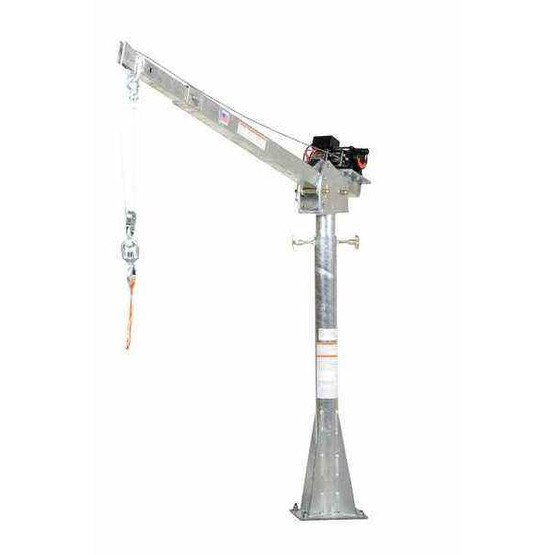

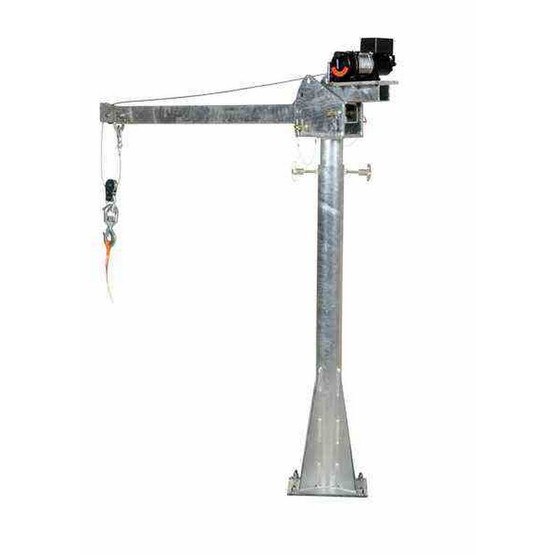

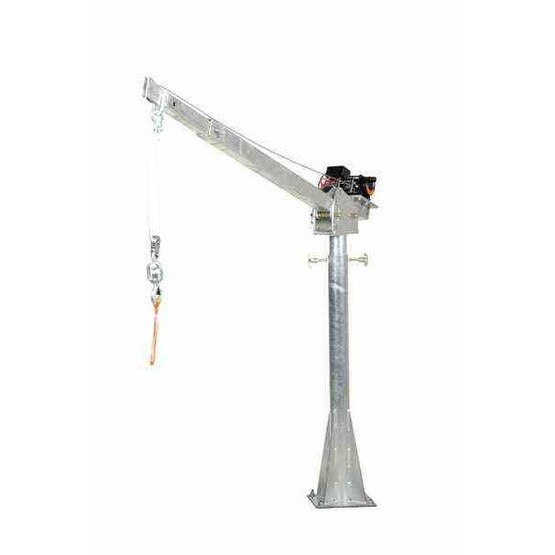

  • The Jib crane is ideal for lifting objects in a variety of areas. With a steel construction and a galvanized finish, the jib crane also features a telescopic boom with an adjustable length and height, manual boom rotation, powered cable winch for easy lifting and maneuvering, and a fingertip switch control. Unit is designed for vertical lifting only. Do not use unit for lifting personnel or overhead lifting.
  • Uniform Capacity (pounds): 2,000
  • 39-1/4 to 63-1/4: Boom Height (in.)
  • 59-9/16 to 96-1/8: 59-5/16 to 95-3/4
  • Rotation (degrees): 360
  • Boom Adjustment Increments (in.): 12
  • Cable Length (feet): 25
  • Cable Diameter (in.): 7/32
  • AC (volts): 115
  • Horsepower (HP): 1/3
  • Mounting Plate Length (in.): 12
  • Mounting Plate Width (in.): 12
  • Capacity at 59-9/16" Fully Retracted (lbs.): 650
  • Capacity at 59-9/16" Mid-Position (lbs.): 400
  • Capacity at 59-9/16" Fully Extended (lbs.): 250
  • Capacity at 74-1/4" Fully Retracted (lbs.): 1,000
  • Capacity at 74-1/4" Mid-Position (lbs.): 770
  • Capacity at 74-1/4" Fully Extended (lbs.): 600
  • Capacity at 86-13/16" Fully Retracted (lbs.): 1,250
  • Capacity at 86-13/16" Mid-Position (lbs.): 950
  • Capacity at 86-13/16" Fully Extended (lbs.): 780
  • Capacity at 96-1/8" Fully Retracted (lbs.): 2,000
  • Capacity at 96-1/8" Mid-Position (lbs.): 1,500
  • Capacity at 96-1/8" Fully Extended (lbs.): 1,200
  • Storage Height (in.): 73
WARNING: This product contains a chemical known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
