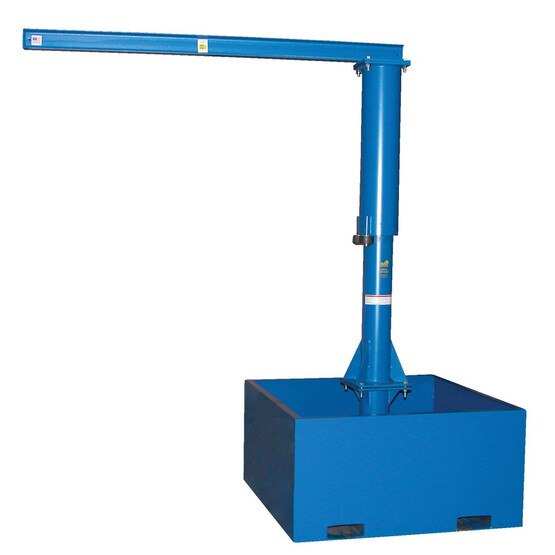

Vestil JIB-CB-50-8-10 Portable Jib Crane - Fork Tube Base
- Unique design allows for easy transportation of this Portable Jib Crane with a fork truck. Standard base included with jib crane is not filled with concrete (instructions included for proper filling). Base may be ordered pre-filled with concrete for immediate use. Upright vertical column bolts to base. Steel construction with blue painted finish. Not for use as a fork truck attachment.
- Uniform Capacity (pounds): 500
- I-Beam Length (feet): 8
- I-Beam Height (in.): 6
- I-Beam Flange Width (in.): 3
- Base Height (in.): 18
- Rotation (degrees): 360
- Base Length (in.): 42-1/4
- Base Width (in.): 42-1/4
- Fork Tube Width (in.): 7-5/8
- Fork Tube Height (in.): 2-5/8
- Under I-Beam Clearance (feet): 10
- Requires 60 Pound Bags Sakrete Mix (quantity): 41
- Product Length (in.): 96
- Product Width (in.): 42.1875
- Product Height (in.): 125.75
