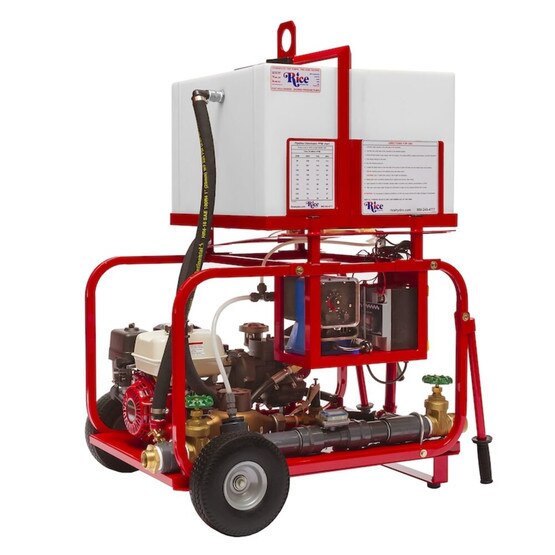

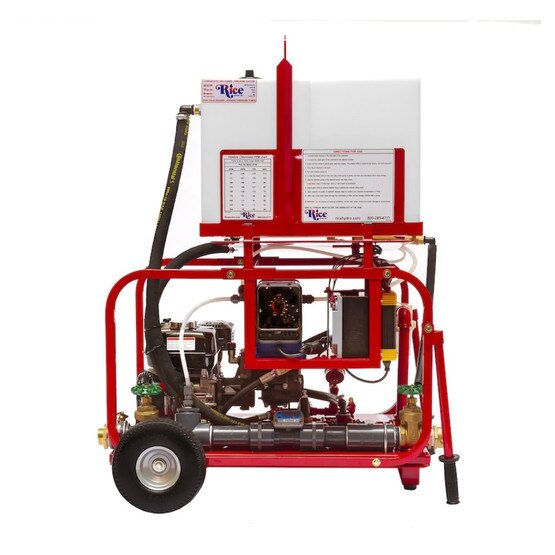

Rice Hydro PCH-11/550 Pipeline Chlorinator
- Chlorinates at target PPM (parts per million).
- Dechlorination of lines to allow safe discharge to ground per local regulations.
- Large volume flow rate, able to fill any diameter line efficiently.
- Adjustable chlorine injection pump.
- Digital flow meter with volume counter.
- Meets chlorination, disinfection standards per AWWA C651-14.
- Meets pressure testing requirements per AWWA C600-17.
- Meets field dechlorination standards per AWWA C655-18.
- Lifting hook for easy transportation.
- Pressure regulator with inlet bypass, adjustable from 70 to 550 PSI.
- Brass petcock on outlet to sample PPM levels.
- Stainless Steel liquid filled gauge, ensures accurate readings with less flutter.
- Heavy duty steel base with roll cage, with powder coated finish.
- No flat tires, and fold down handles with comfortable hand grips.
More v
- Test Pump: 11 GPM up to 550 PSI.
- Triple diaphragm pump.
- 196 CC 6.5 HP 4 cycle air cooled Honda engine with oil alert.
- 12 Volt battery and inverter.
- 20-gallon water tank equipped with float valve for level control, fitted with a locking cap.
- 20-gallon chlorine tank with drain valve for safe recovery of unused chlorine, fitted with a locking cap.
- Inline Stainless Steel mesh strainer.
- 8-foot, 1/2 -inch high-pressure outlet hose with quick disconnects.
- 2-inch schedule 80 PVC manifold.
- 1 & 1/2-inch NHT inlet and outlet gate valves on PCH manifold.
- Dimensions: 36" x 26" x 52"
