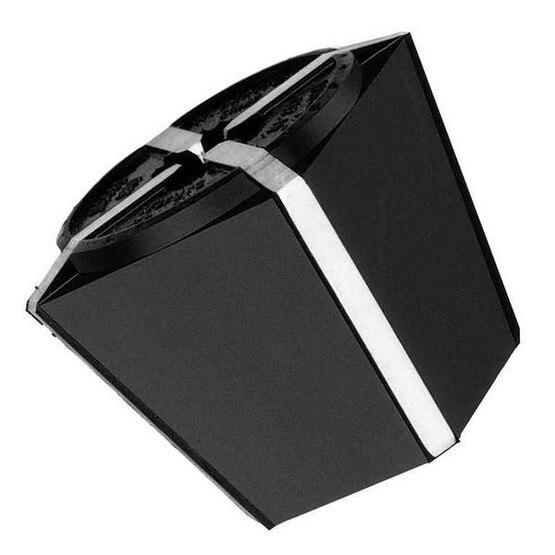

Jacobs Chuck 9555D 9555 J910 Lathe Collet | 9555D
- Parallel Jaw Insert Surfaces Exert Uniform, Accurate Gripping Force Up to Three Times Greater Than Can Be Achieved with Split-Steel Collets.
- Each Collet Accepts and Precisely Centers A Wide Range of Both Decimal or Metric Diameters (Within the Collet Capacity Range) to Speed Setups and Increase Machining Productivity.
- Durable One-Piece Construction. Synthetic Rubber Retains Flexibility and Resists Deterioration From Heat, Coolants and Cutting Compounds.
- Steel Jaw Inserts Precision Ground After Molding Process to Ensure Maximum Gripping Accuracy. Hardened for Greater Wear Resistance Than Split Steel Collets.
- Each Collet Bore is Held Concentric to the O.D. Tapers, Front and Back, to Minimize T.I.R.
- Automatically Seals Tool O.D. to Prevent Coolant Flow Through Thus Increasing Tool Wear.
- Seals Collets and Machine Spindles to Protect From Abrasive Particles and Swarf.
More v
- Catalog Number: 9555D
- Clearance Diameter: 0.6
- Cone Angle: 26
- Contact Length: 1.74 in
- Coupon Headline: Lathe Chuck Collets
- Long Description: 9555 J910 Lathe Collet
- Maximum Capacity: 0.125 in
- Minimum Capacity: 0.060 in
- Model Number: J910
- Number of Inserts: 4
- Outside Diameter: 2.25 in
- Packaging: Bagged
- Shelf Pack Qty.: 1
- Table Description: 9555 J910 Lathe Collet
- UNSPSC_V7.0901: Collets
- UPC: 095456095557
- Weight (Catalog): 0.44 lb
