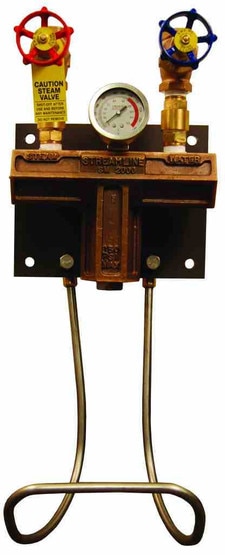

Dixon Valve SWDS Water-steam Washdown Station
- Safely blends steam and cold water for hot water on demand
- Should cold water fail, the steam is instantly shut-off
- Wall mounted station, mounting plate and hardware included
- Features control valves, a dial thermometer, in-line check valves and a stainless steel hose rack
- 3/4" inlet and outlet
- Steam pressure requirements80 PSI minimum, 90 PSI maximum
- Water pressure requirements50 PSI minimum, 80 PSI maximum
More v
- Material: Bronze
- Maximum Operating Pressure 1: 150 PSI
- Maximum Temperature: 200°F
WARNING: This product contains a chemical known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
