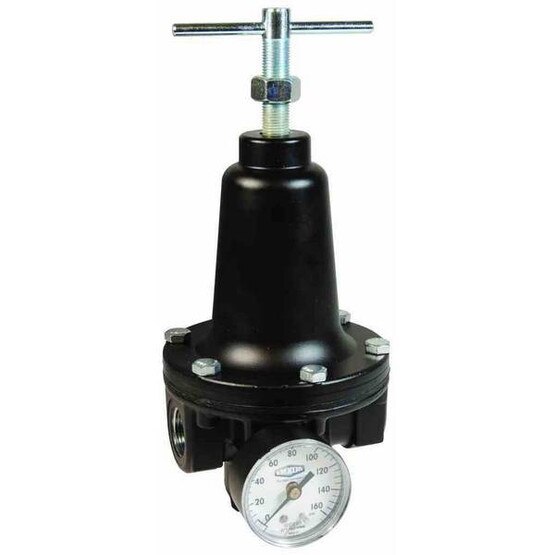

Dixon Valve R119-12CG 1-1/2" Standard Regulator W/gc230 Gauge
- diaphragm operated
- spring adjustment mechanism
- t-handle design
- includes a GC230 gauge
- zinc body
- Acetal bottom plug
- aluminum spring cage
- Designed for air service only!
- SCFM ratings at 150 PSIG inlet pressure
- Includes: With Gauge
- Port: 1-1/2"
- Pressure Range: 2 - 125 PSIG
- Maximum Operating Pressure: 300 PSIG
- Temperature Range: 40F to 120F
- Flow: 250 SCFM
