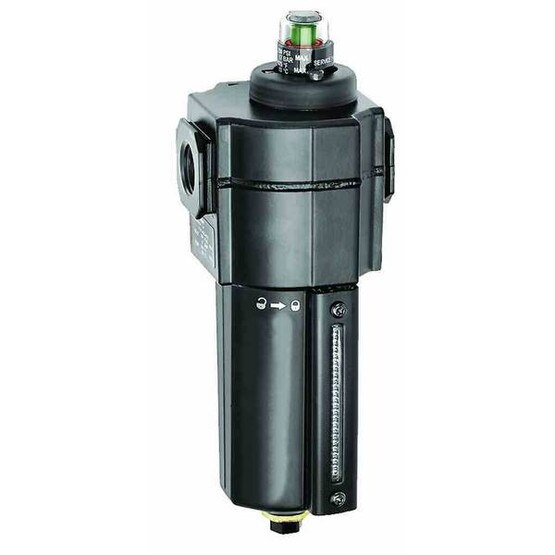

Dixon Valve F74C-4A-MB 1/2" Coalescing Filter, Std Flow Metal Bowl, Auto Drain
- Automatic Drain
- Metal Bowl
- quick-release bayonet bowl
- prismatic lens liquid level indicator
- provides air quality class 2 hydrocarbon and class 1 particulate removal per ISO 8573-1
- element removes particles down to 0.01mm. Maximum remaining oil content of air leaving the filter is 0.01 ppm at 70°F (21°C) with an inlet concentration of 8 ppm
- service life indicator turns from green to red when element needs to be replaced
- For maximum service life install a general purpose filter upstream of the oil removal filter.
- Designed for air service only!
- Pressure rating given at ambient temperature 70°F.
- SCFM ratings at 90 PSIG inlet pressure
More v
- Port: 1/2"
- Maximum Operating Pressure: 250 PSI
- Flow: 75 SCFM Dry, 35 SCFM Saturated
