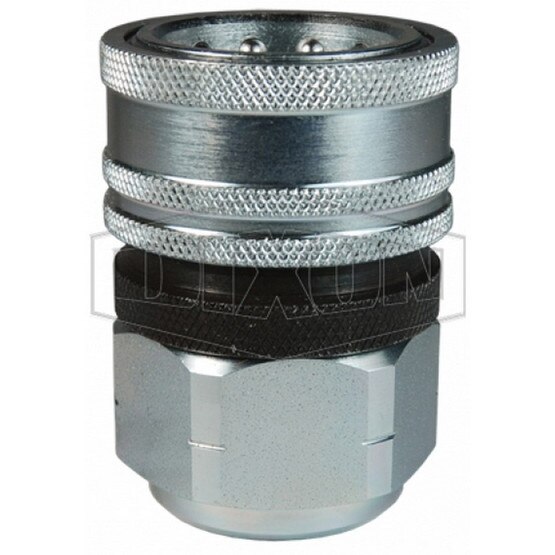

Dixon Valve 8TRBF8 1 Euro Coup | 1 F-BSPP Steel
- Interchange: TEMA European Interchange
- Length: 3.90" 99.0 millimeter
- Maximum OD: 2.56" 65.0 millimeter
- Maximum Operating Pressure: 3,200 PSI
- Max Operating Pressure met: 220 Bar
- Pressure With Steel Couple: 3200 PSI 220 bar), 12800 PSI 900 bar)
- Product Material: Steel
- Seal: Nitrile
- Series: DQC TR-Series
- Style: Valved
- Temperature Range: -40 to 250 Degrees F -40 to 121 Degrees C
- Thread: Female BSPP
- Thread Size: 1" 11
- Compatibility & Interchange Data: Compatibility amp Interchange Data TEMA European InterchangeTEMA 3800 5000 7500 10000 SeriesCEJN Series 525
More v
