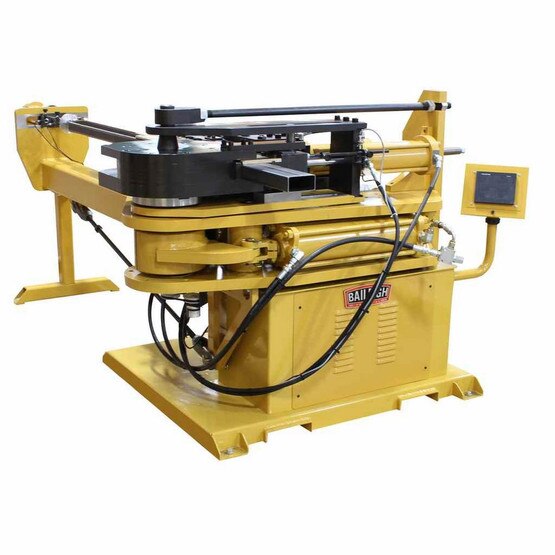

Mandrel Tube Bender - 2" x 4" Rectangle Cap, 100° Max Bend - Baileigh
- Geared towards the automotive frame rail market, this compact mandrel bender is a fraction of the size and cost of traditional bending solutions.
- Capable of bending to 100°

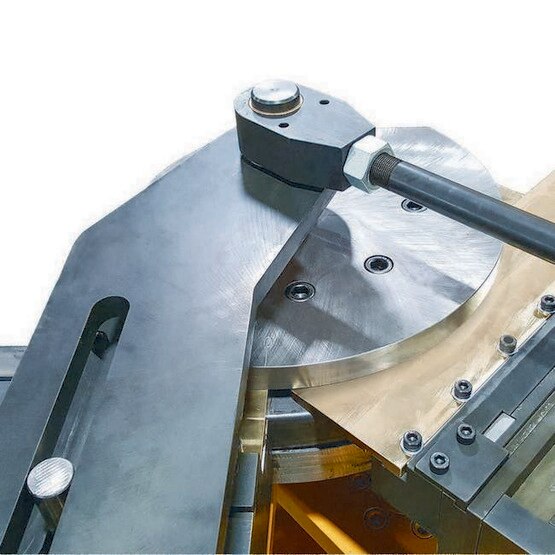

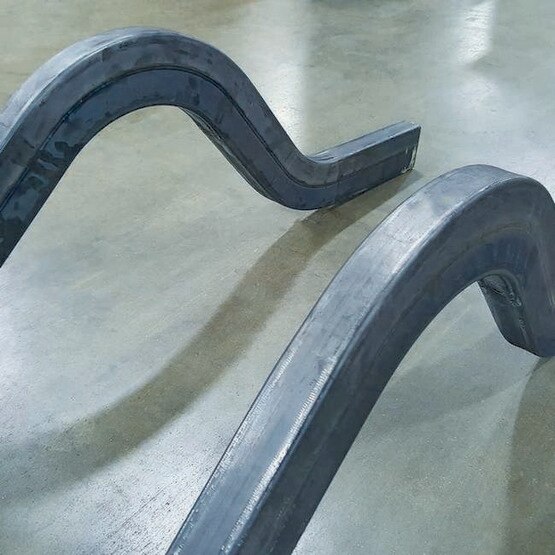

- Many tooling options capable of bending rectangle the hard way, and easy way, square and round materials, this tube bender is about as versatile as it gets.
- A full size color touchscreen allows easy programming and endless memory via external USB. Once programmed, the auto sequencing hydraulics eliminate any chance of human error.

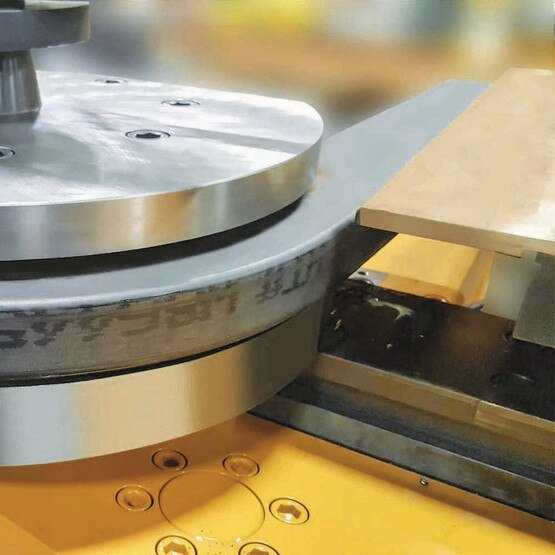

- Early mandrel retraction ensures a smooth bend every time and the encoder based auto-stop is extremely accurate at a speed of 5-10 second @ 90 degrees.
- An endless tooling library and several table length options, the bender can be customized and engineered around your bending needs.
- 220V three phase power
More v
- Country of Manufacture: United States
- Working Table Size: Depends on length chosen
- Bend Capacity Square: 3" x 3" x 11ga.
- Degree of Bend (Max): 100
- Rectangle Capacity: 2" x 4" x 11ga. Hardway
- Bend Direction: Clockwise
- Max. Bend Speed: 90 in 5 seconds
- Max. Clr: 12"
- Max. Hydraulic Pressure: 3000 psi.
- Hydraulic Motor: 7.5 hp
- Power: 220V / 3-phase
- Shipping Weight: 3000 lbs
- Special Notes: Must purchase appropriate table in order for machine to function properly! Tooling not included, contact Baileigh at 920-684-4990 for correct sizing.
