4' Box and Pan Brake - Hydraulic, 10 Gauge - Baileigh

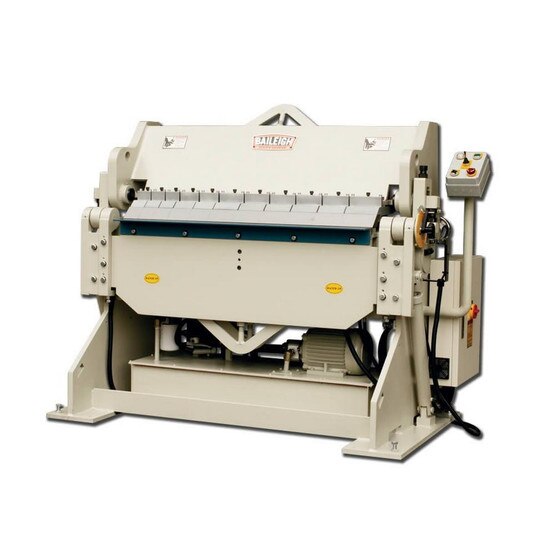

- Have thicker material to bend? Then look no further than the BB-4810H hydraulic box and pan brake from Baileigh Industrial.
- The BB-4810H finger brake will do a maximum of 10 gauge sheet metal at a full 48 inches.
- This semi-automatic sheet metal brake has 3-3", 2-4", 5-5" and 1-6" fingers that allows any sheet metal fabricator to adjust for different size boxes and pans they wish to make.
- The BB-4810H box and pan brakes is built with a fully welded beam, bending leaf and is further stabilized with truss rod support that helps minimize any deflection when bending at full capacity.
- The BB-4810H hydraulic sheet metal brake uses industrial grade hydraulics to lift the leaf and can be operated in manual or semi-automatic mode.
- For even more holding power, when bending 10 gauge mild steel, the beam is lifted and clamped via an electric motor that turns a cam.
- The BB-4810H hydraulic finger brake has a programmable bend adjustment making reproducing bends easy on this hydraulic sheet metal brake.
- Another nice feature of the BB-4810H, like all the Baileigh Industrial box and pan brakes, is that the bending apron is removable allowing the operator to get closer between bends.
- The BB-4810H has a 1 beam adjustment and is capable of bending to a maximum of 135°.
- Operating on 220V 3 Phase the BB-4810H uses a powerful 3 hp motor to control all the hydraulic functions.
More v
- Motor: 3 hp
- Min Reverse Bend: .984"
- Thickness (SS): 10 ga. (12 ga.)
- Box Depth: 6"
- Beam Adjustment: 1"
- Bend Angle: 0 135°
- Finger Sizes: 3" 4" 5" 6"
- Power: 220V / 3-phase
- Shipping Weight: 3,850 lbs.
- Length: 48
- Shipping Dimensions: 83" x 46" x 69"
